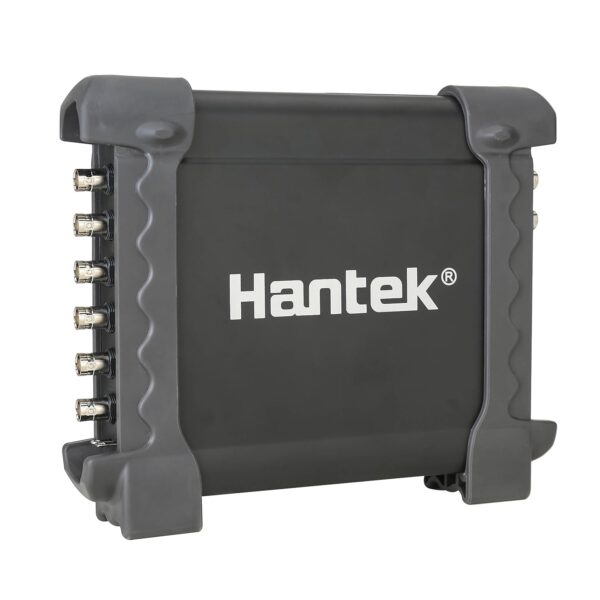

Hantek 1008C PC USB 8CH Automotive Diagnostic Digital Oscilloscope/DAQ/Programmable Generator

Original price was: $119.99.Current price is: $109.99.

Add to Wishlist
Add to Wishlist

Price: $119.99 - $109.99
(as of Feb 02, 2025 17:17:09 UTC – Details)

Buy On Amazon

Product Description

1008C1008C

Product introduction:

100MHz, 8 channels oscilloscope for vehicle testing. Over 80 types of automotive diagnostic function (​Ignition/Sensor/Bus detection/Performe/Starter and charging circuits etc.)​. Video Help Function, provides the video help of diagnostic which can be watching online, The diagnostic result can be generated diagnostic report., printed or taken screenshot by pushing one key, many methods to save the data. Supported to record waveform for a long time. It can simulate camshaft and crankshaft signal. Transmit signals through USB 2.0 interface plug and play, and no need extra power supply.

PC software only supports windows7/8/10 32-bit and 64-bit, do not support OS

33

Function Selection

There are three functions of vehicle diagnosis, oscilloscope and signal generator, including 78 types of vehicle diagnosis function.

33

Reference Waveform

Over 80 types of standard reference waveform inside and can be callout or close with one button. It is convenient to be compared.

33

Multilanguage Support

Support the display surface in Chinese, English, German language, and it can be switched freely.

33

Measurement Method

20 types of automatic measurement method which can be callout or close with one button. It is convenient and visual to read out the result.

33

One Button Screenshot

Save the current waveform and generate pictures. Storage location is optional and easy to find.

33

Quick Guide

Callout the quick guide column with one button. There are special vedio guide for each vehicle diagnosis function, including wiring method, adjustment method, reference waveform etc. And it is supported to be checked through scanning the QR code.

33

Print

The result can be printed with one button and generate diagnosis report which is easy to be saved and recorded.

33

REF Comparison Waveform

The user can save the waveform as REF format and callout it again when you need to compare the two waveforms catched in different time.

33

Data Storage

The diagnosis result can be saved as the format of txt, csv, rfc, xls, doc, jpg and etc. It is convenient to be checked and compared later.

33

8CH Vehicle Diagnosis

8CH signal can be measured simultaneously. The measurement voltage of each channel can be adjusted independently. You can choose to open or close each channel.

33

Waveform Record

Support to record and replay the waveform. The waveform can be save into the computer hard disk and easy to read. There is no limit to the record time which can long-time measure and record the waveform for troubleshooting.

33

Cursor Measurement

Support 4 types of cursor measurement mode -cross,track, horizontal, and vertical.It’s easy to read out the time and voltage of irregular signal.

33

Color and Lightness

The background color is optional as user’s preference. And the lightness of waveform and gridding is settable.

33

USB Communication

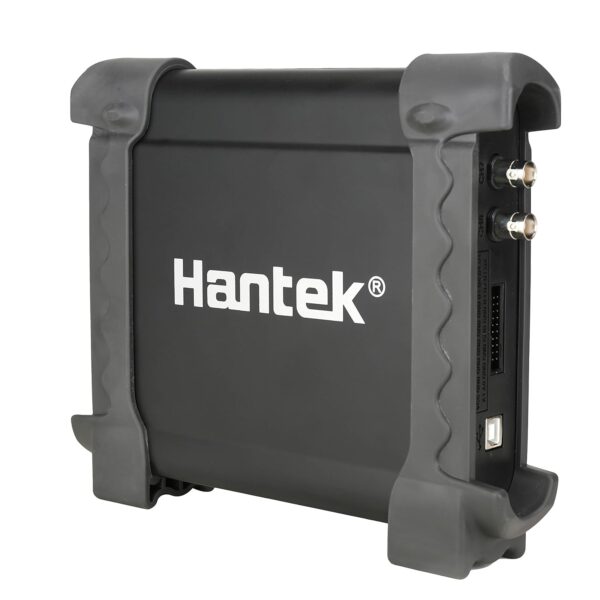

USB2.0 power supply + communication interface, plug and play, and support hot plugging.

33

Signal Generator

Signal generator function, can simulate crankshaft and camshaft signal.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars

615

4.4 out of 5 stars

615

4.3 out of 5 stars

470

4.4 out of 5 stars

551

3.8 out of 5 stars

45

Price

$98.99$98.99 $109.99$109.99
— $224.00$224.00 $79.99$79.99

Description
Automotive Diagnostic Equipment Automotive Diagnostic Equipment Handheld Oscilloscope Digital Storage Oscilloscope Coil-on-Plug and Signal Probe Automotive Diagnostic Equipment

Channel
8CH 8CH 2CH+1CH 2CH+1CH 2CH+1CH

Bandwidth
100MHz 100MHz 70MHz 100MHz 80MHz

Sampling Rate
2.4MSa/s 2.4MSa/s 250MSa/s(Single-channel), 125MSa/s(Dual-channel) 1GSa/s (single channel) 500MSa/s (two channels) 250MSa/s(Single-channel), 125MSa/s(Dual-channel)

Maximum record length
4K 4K Max. 6K for single-channel; 3K samples per dual-channel Single channel maximum 8M,Two channels maximum 4M Max. 6K for single-channel; 3K samples per dual-channel

AWG

Arbitrary Waveform Generator Sample Rate
250MSa/s 200MSa/s 250MSa/s

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 8.8 x 1.7 x 7.5 inches; 3.66 Pounds
Item model number ‏ : ‎ 1008C
Date First Available ‏ : ‎ April 30, 2016
Manufacturer ‏ : ‎ Hantek
ASIN ‏ : ‎ B01EZX2NXO

8-Channel Automotive Oscilloscope: A virtual oscilloscope that combines automotive diagnostic functions, general-purpose oscilloscope functions and a programmable signal generator
Automotive Diagnostic Functions: More than 80 automotive diagnostic functions (Ignition/Sensor/Bus Detection/Actuator/Starting & Charging, etc.) come standard. Quickly diagnose the stability of automotive systems and make judgements

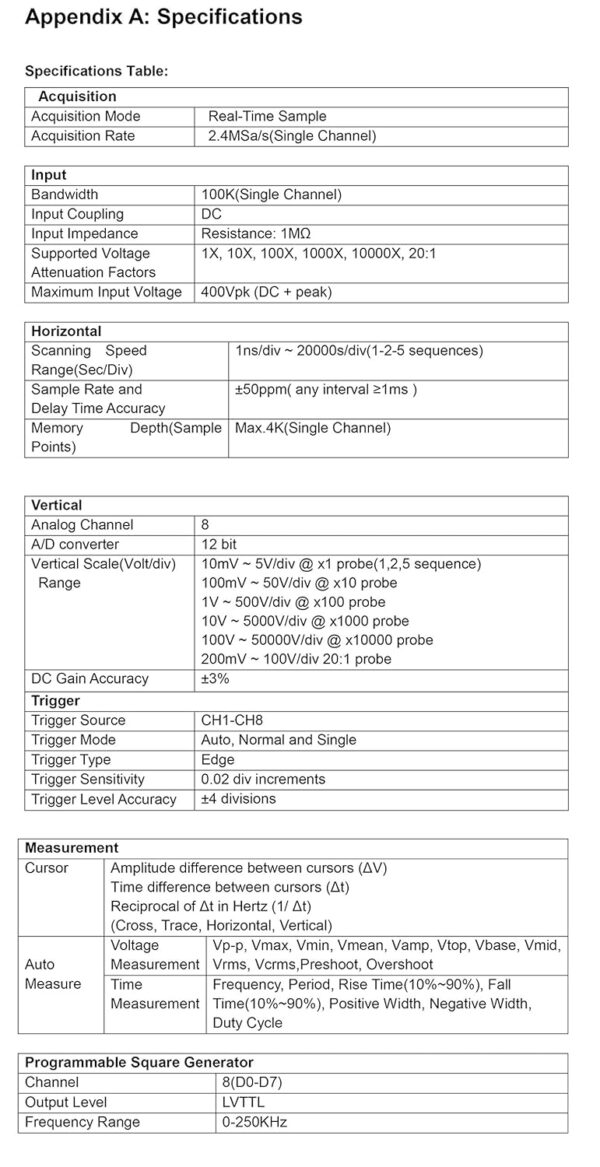

Universal Oscilloscope Function: 8 analogue channels, 12 bits resolution, 4K memory depth, 2.4MSa/s real-time sampling rate; 20 automatic measurement modes, can be selected with one key to turn on or off, convenient and intuitive to read the signal measurement results
Programmable Signal Generator with USB storage: 8 channels, LVTTL output level, 0-250KHz frequency range. Signal generator function to simulate crankshaft and camshaft signals
The 8-channel automotive oscilloscope is easy to operate and suitable for electricians as well as technicians, hobbyists and electronics enthusiasts to learn basic circuit diagnostics, basic electronic equipment troubleshooting and repair of automobiles, home appliances and other electronic products. Can transfer signals through the USB 2.0 interface, easy to connect to Android devices such as tablets, smart phones and personal computers
